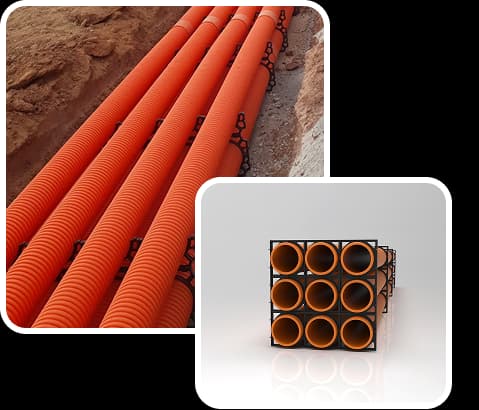

DWC (Double Wall Corrugated) Pipe Spacers are designed to provide alignment, support, and uniform separation of DWC pipes during underground installations or in multi-pipe configurations. They ensure smooth installation by preventing direct pipe-to-pipe or pipe-to-surface contact, reducing friction, and protecting the corrugated structure of the pipes.

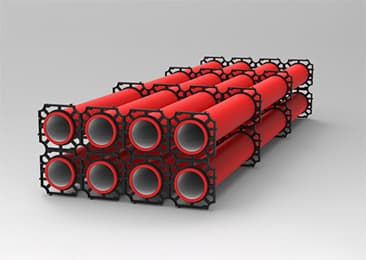

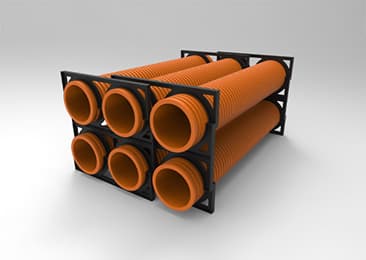

Our modular spacer design allows custom configurations such as 2×2, 3×2, 5×4, or any required arrangement, making it suitable for large utility corridors and multi-duct projects.
| Parameter | Details |
|---|---|
| Material | Acrylonitrile Butadiene Styrene / Polyethylene |
| Spacer Type | Standard and Customized |
| Diameter Range (Pipe OD) | 50 mm – 800 mm (custom sizes available) |
| Spacer Thickness / Heights (Stand-off) | 12 mm, 15 mm, 20 mm, 25 mm, 30 mm, 40 mm, 50 mm (custom sizes on request) |
| Typical Distance Between Pipes | 50 mm – 100 mm (adjustable based on design) |
| Recommended Spacing For Pipe Configuration | 1.0 – 3.0 meters (depending on pipe size & soil load) |
| Temperature Resistance | -20°C to +80°C |
| UV Resistance | Yes |
Underground Power Cable Protection with DWC Pipes
Data Center Projects (pipe ducting for high-volume cabling)
Sewerage & Drainage Systems
Water Supply & Irrigation Pipelines
Multi-duct Cable & Conduit Installations
Industrial & Utility Piping Systems
HDD & Trenchless Pipeline Installations

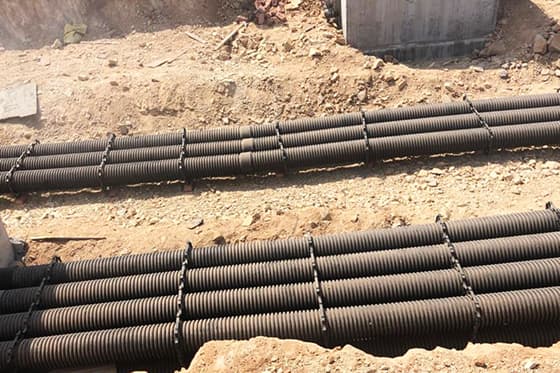

Prevents pipe-to-pipe or pipe-to-surface contact
Maintains uniform spacing in corrugated DWC pipe bundles
Protects pipe structure during pulling or trenchless installation
Extends service life by minimizing wear and abrasion
Ensures proper annular spacing for grout filling (if needed)
Fast, simple, and cost-effective installation
Maintenance-free once installed

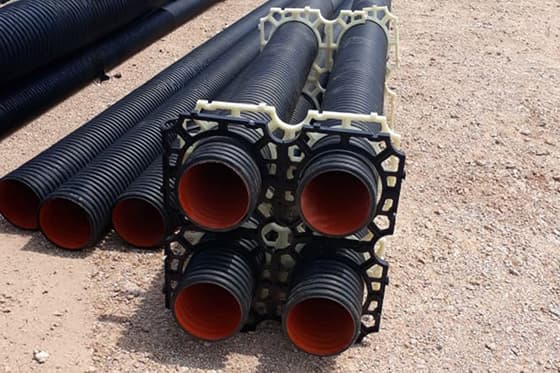

Select the spacer thickness based on required stand-off height

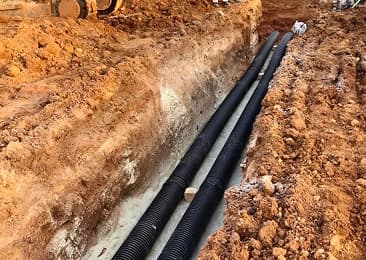

Fix spacers at recommended intervals (every 1 m – 3 m along trench or casing)

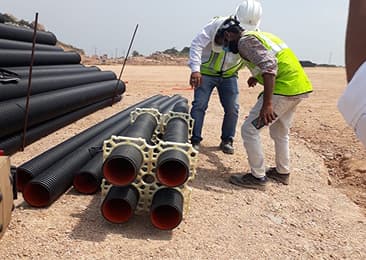

Assemble multiple pipes into the required configuration (2×2, 3×2, 5×4, etc.)
Insert the DWC pipe bundle smoothly into casing/duct — no lubrication required

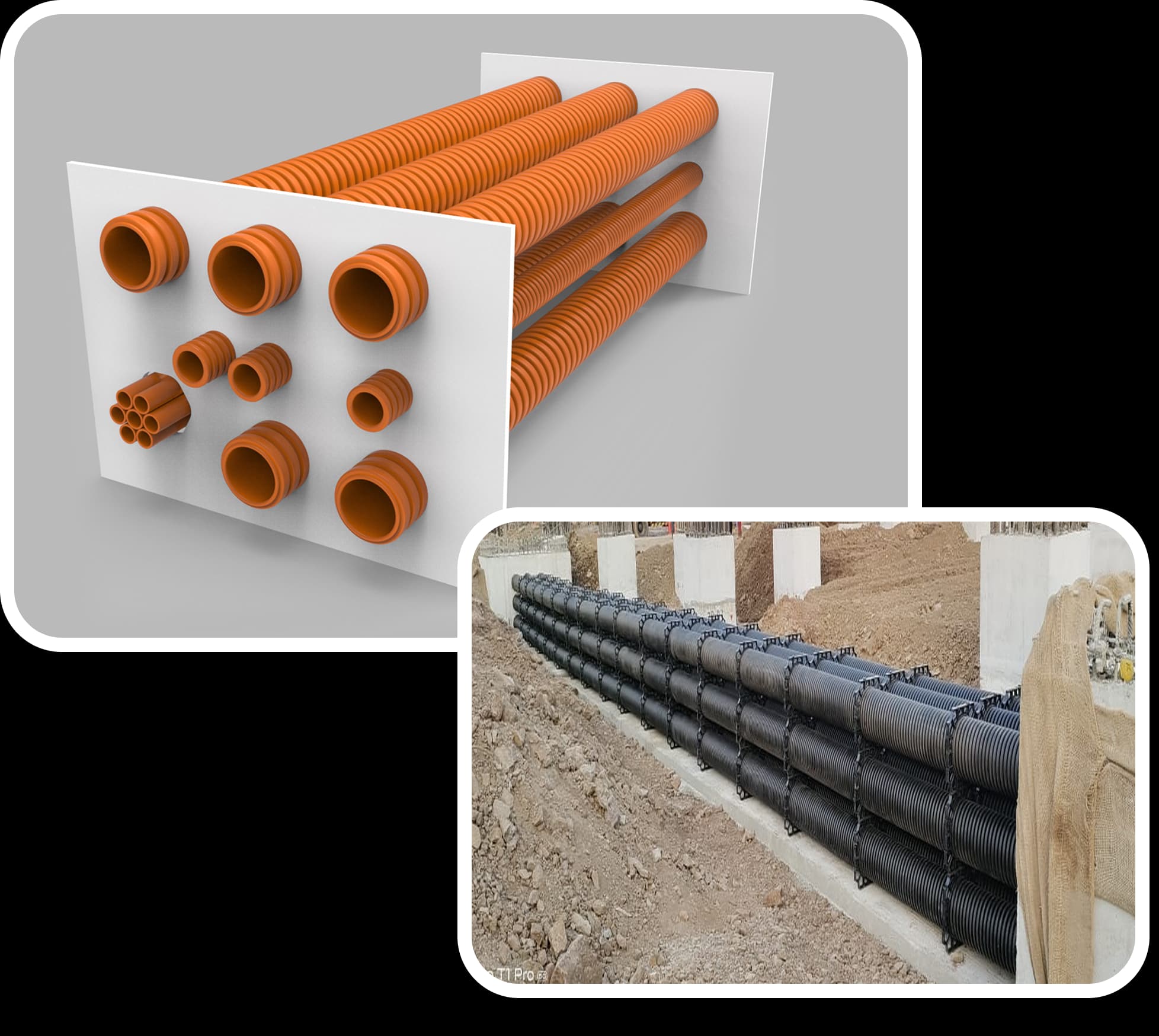

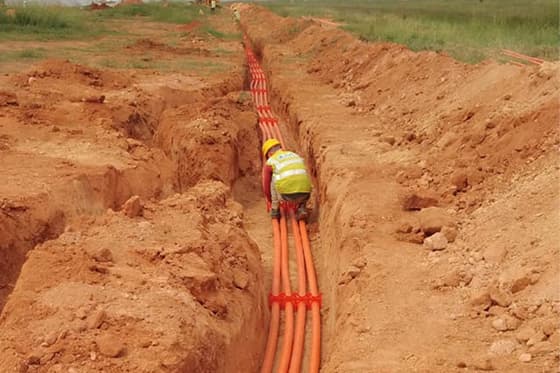

Standard DWC Pipe Spacers
Customized spacers for required DWC diameters

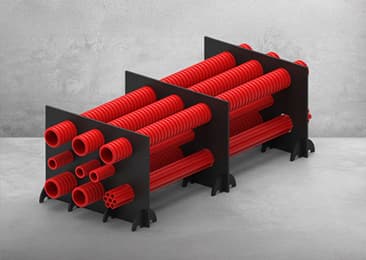

Configurable spacers for multi-pipe arrangements with custom spacing
As a leading DWC Pipe Spacer Manufacturer in India, Plastowell Polymers supplies reliable spacer solutions across the country and exports to major global markets. We serve clients throughout the Gulf region (Saudi Arabia, UAE, Qatar, Oman, Kuwait), Africa (South Africa, Kenya, Nigeria, Egypt), as well as South-East Asia, the USA, and Europe. With advanced manufacturing facilities and high-precision tooling, we deliver consistent quality, fast lead times, and custom-engineered DWC spacers to meet international standards.
We design and manufacture made-to-order DWC Pipe Spacers for any pipe size or configuration.
Response within 24 hours
